This article explains how to send a vMix stream to a Coresee Event. vMix pushes its output to your event over RTMP, using the RTMP URL and Channel ID shown on the event’s page, and the stream then appears in the Live Broadcast section of your event preview.

​
Before you begin

Make sure you have the following ready.
  • A Coresee Event, with access to its event page.
  • A vMix project open on the computer you’ll stream from.
  • A network connection with enough sustained upload bandwidth for a 3 Mbps video stream.

​
Setup steps

Copy the connection details from your event, enter them in vMix’s streaming settings, then start the stream.
1

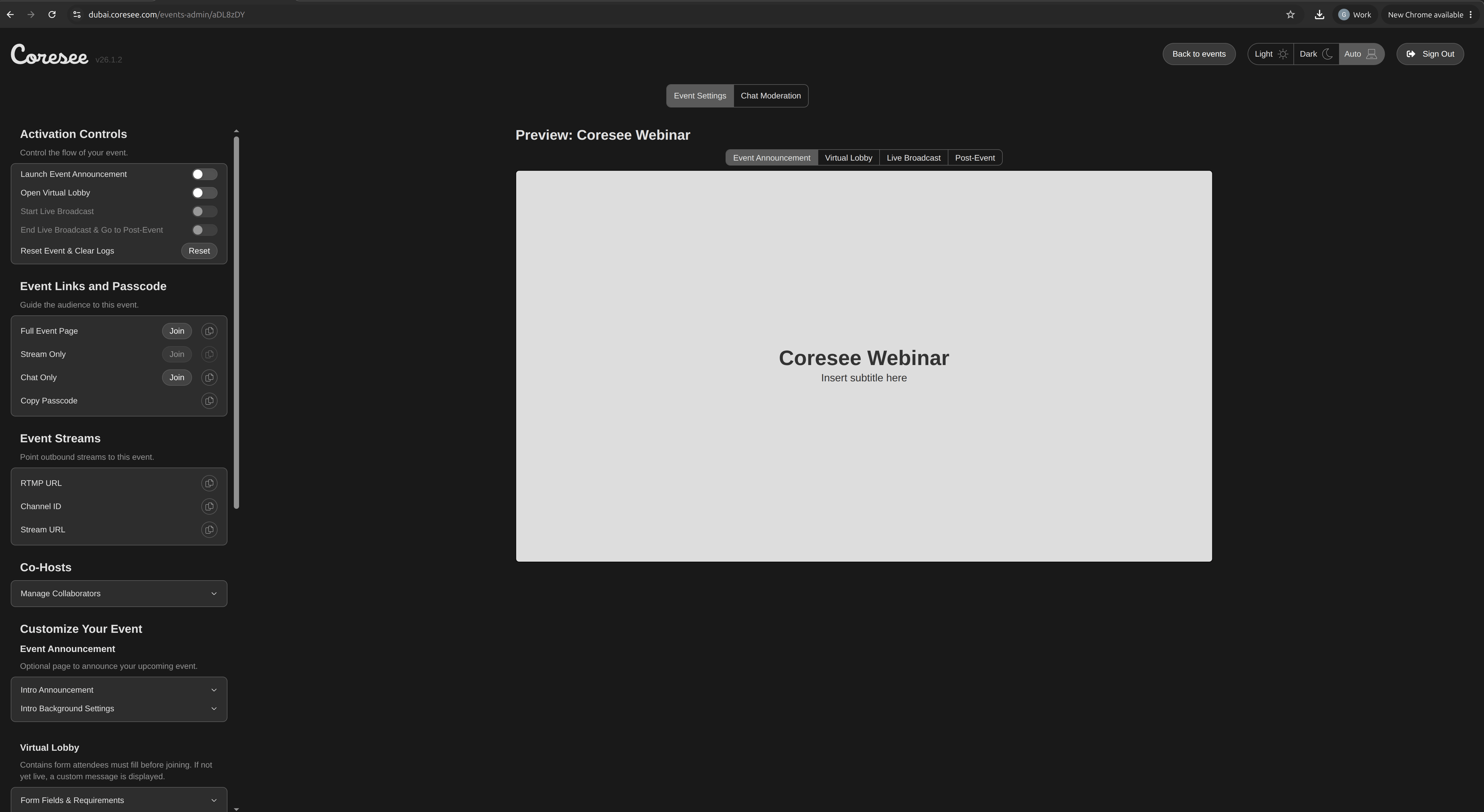

Copy your RTMP URL and Channel ID

Go to your event’s page. In the left-hand side, under Event Streams, copy the **RTMP URL **and the Channel ID.Coresee Event Configuration Page
2

Open vMix's Streaming Settings

Inside your vMix project, click the cog next to the Stream button on the bottom bar.
3

Enter your Coresee connection details

Select **Custom RTMP Server **as the Destination, then fill in the fields as follows.
4

Choose the stream quality

Select H264 1080p 3mbps AAC 128kbps as the stream quality.

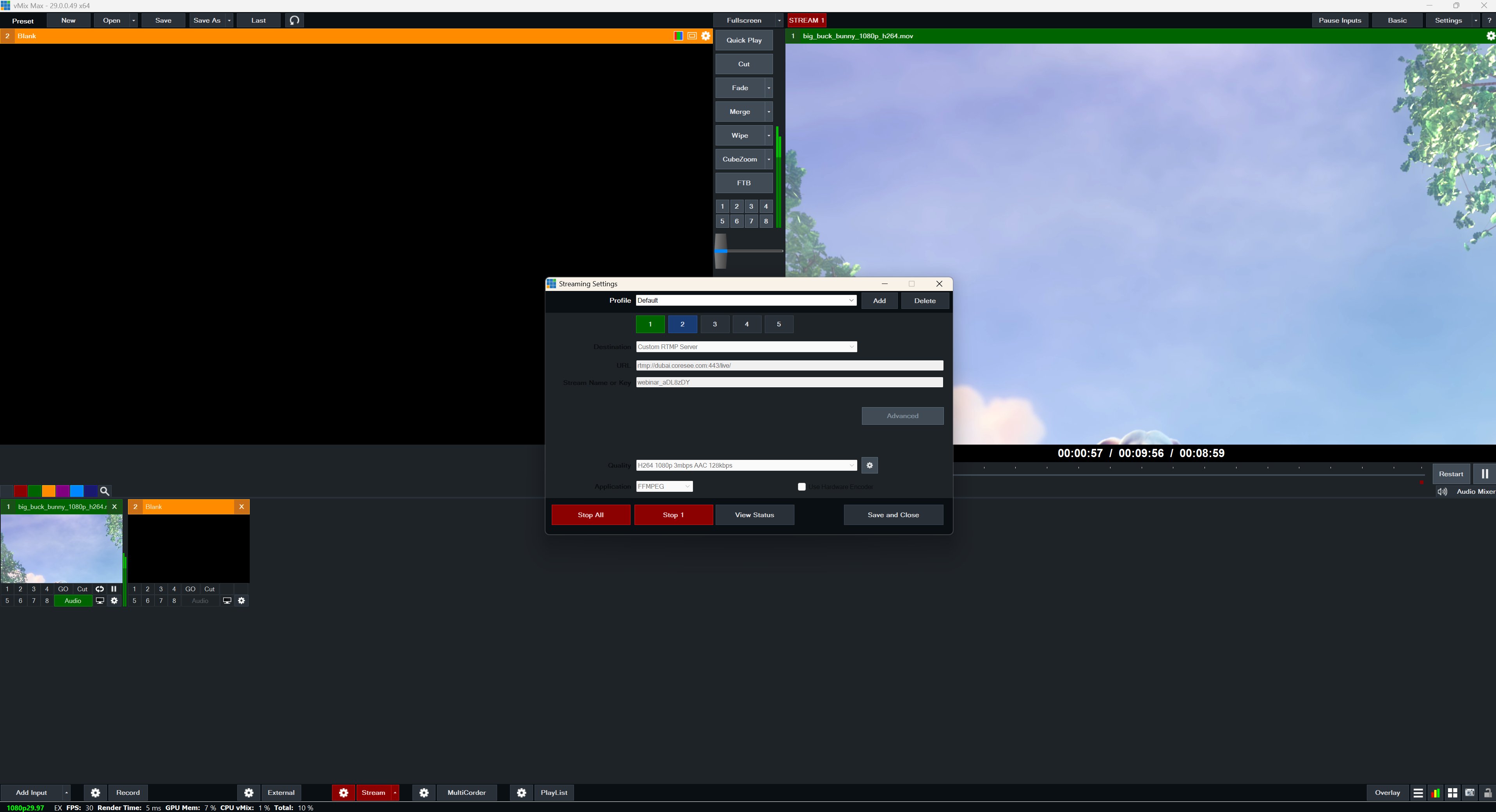

5

Start the Stream

Start your stream from inside the Streaming Settings page, or by clicking the **Stream **button on the bottom bar.Start Stream Vmix

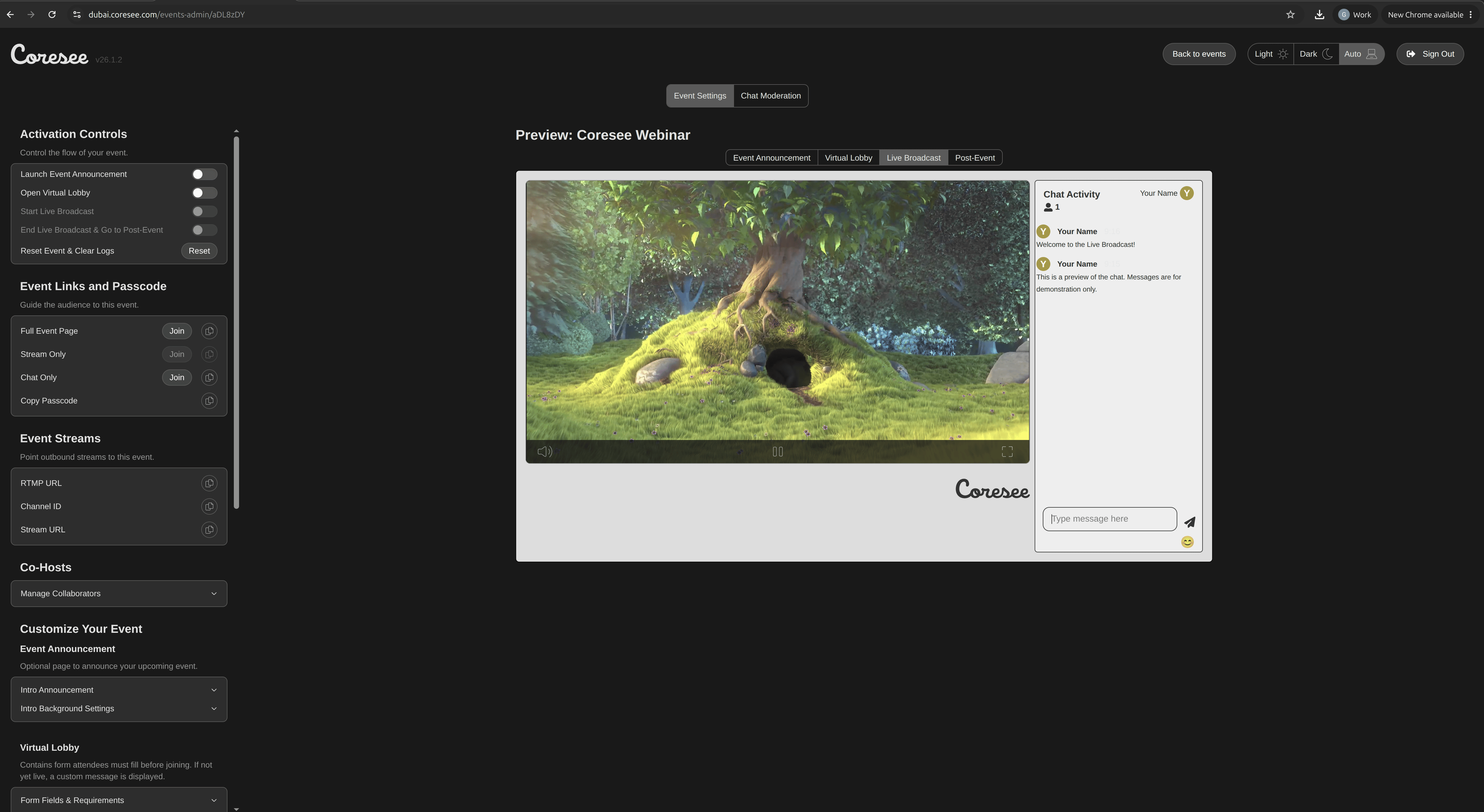

Your vMix stream appears in the event!On your event page, go to the Live Broadcast section of your preview. Your vMix stream will appear there.
Event Preview Vmix

​
Troubleshooting

A few things to check if your stream doesn’t appear in the Live Broadcast preview.
Confirm the stream is actually started in vMix, and that the RTMP URL and Channel ID in vMix exactly match the values shown under Event Streams on your event page.
Confirm your network has enough sustained upload bandwidth for the 3 Mbps stream quality selected
